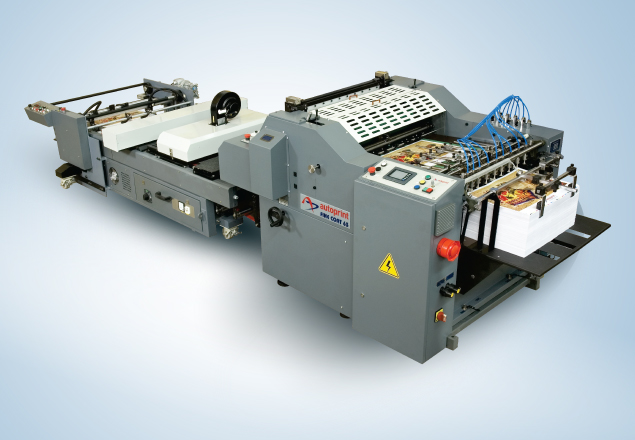

Autoprint Fine Coat 105 Drip Off
For years, lamination has been used to protect printed matter and enhance print value. In the recent past, however there has been increasing concern over the environmental impact of traditional lamination methods. The durability of lamination has also been questioned. Addressing both these issues effectively while enhancing visual appeal of the printed material, Autoprint satisfies the customer need of higher productivity and additional safety features by designing new Autoprint Fine Coat 105 Drip Off model.
This machine runs at enhanced speed with CE standard safety features and has added features to make it user friendly and more productive. Autoprint Fine Coat 105 Drip Off is an offline 2 tower UV and Aqueous coating machine that help you to add value to your print job and tap the growing potential in this market segment. This machine is specially designed to give high quality special coating effect on printed products.
Stream Feeder with Controls
Autoprint Fine Coat 105 Drip Off has a Stream Feeding System equipped with separate pick up & forwarding unit, which ensures continuous sheet feeding of a wide range of paper stocks from 60 - 600 gsm with ease. Its suction device separates and lifts the paper precisely from the tail end, while the mechanical device feeds the paper to the register board through pull-in rollers, continuously as a stream. Feeder is equipped with motorized rising mechanism, which ensures precise lifting of paper table during feeding operation.
Conveyor Board is provided with a suction belt with minimal runners and brush rollers on top to ensure smooth and trouble free feeding of stock from thin paper to thick board, ranging from 60 - 600 gsm. This unit can be pneumatically lifted by a simple button ensuring user friendliness.
The Coating System is a 3 roller construction with anilox roller which ensures consistent and uniform coating throughout the paper. The coating thickness can be adjusted between 3-8 gsm as per the desired level with different combination of anilox and rubber roller. This is achieved by skew and pressure adjustment provision available on the Metering Roller. The varnish fountain roller has a continuous drive through a separate motor to ensure that the aqueous solution does not dry on the duct. The unit is equipped with a changeable anilox and rubber roller system. The life of rubber roller is increased as it is pneumatically disengaged from the nearby running rollers when the machine is in idle running.
The offset priming unit contains 16 roller systems with 3 form rollers and 4 oscillator rollers. All rubber rollers are made up of special material for long life and are easily removable for any purpose. The ductor roller is suspended on ball bearings for smooth ink/varnish transfer from the duct. Duct is provided with laser cut blade and provided with cam lever micro setting backed by a position scale. This enhances the operated to set the optimum ink flow to the required matt/drip off effect.
This unit is provided with continuous dampening system. A gear driven rollers including one form roller. Machine is Provide with a high efficient chiller unit to maintain the pH value of fountain solution which enhances the drip off effect.
PLC Touch Screen Panel
The controls of Autoprint Fine Coat 105 Drip Off are housed in a PLC Touch Screen Panel. A 7 inch bigger PLC Touch Screen Panel allows easy operation and maximum productivity. This facilitates easy detection of defects and provides relevant feedback of the machine operating conditions.
Front lay fine and cross adjustment
Provision for independently adjusting the front lay along with cross adjustment makes the machine more operator friendly
This helps to increase the productivity of the machine as the second feeder table can be preloaded while the machine is running. The preloaded table can be replaced quickly and the production can be continued.
Blanket Jam Sensor
The Blanket Jam Sensor monitors the coated sheets and in case the sheets are interrupted anywhere on the blanket or during transfer, the machine stops immediately with a warning display on the control panel.
Cross Feed/Ultrasonic Double Sheet Sensor with Front Lay Lock
Any cross sheet in the front lay can be detected with the help of Cross Sheet Sensor. In addition, machine is provided with electro mechanical double sheet detector. Whenever double sheet and cross feed is detected, the pneumatic system automatically locks the front lay and the paper will not be fed into the cylinder. The feeder will also be cut off automatically.
Automatic Roller Cleaning System
Pneumatically operated roller cleaning system having a bridge roller between the inks and dampening form rollers get engaged along with the cleaning tray which is attached to the oscillating roller. This ensures a trouble free cleaning of all rollers which is operated from the HMI touch screen.
Ink roller cleaning is quickly done using pneumatically operated cleaning tray. In addition pneumatically operated bridge roller is provided to engage the dampening rollers with ink rollers for easy washing.
Centralized Lubrication System with Timer
Autoprint Fine coat 105 Drip Off has an Automatic Lubrication System with Timer, which can be set to lubricate the machine at regular intervals. This enhances the life of the moving parts by preventing wear and tear. Automating the Lubrication System also avoids human dependency thus reduces the risk.
Inter-deck UV Dryer
The inter deck drier consist of one UV module with 0-100% low/high intensity control along with shutter type on/off.
Declutching of Inking & Dampening Unit
The offset printing unit has a declutching mechanism to disengage the roller unit in case drip off printing is not required. This increases the life of rubber rollers.
- Stream feeder with Pick up and forward unit
- Lead screw type side stacker
- Motorized pile up/down
- Macro level Pile Adjustment
- Conveyor with suction belt
- PLC based control with 7 inch touch screen
- Side pull lays on both ends with micro adjustment
- Fine adjustment of front lay
- Electro mechanical as well as ultra-sonic double sheet detector
- No sheet and cross sheet detectors
- Easily removable gripper shaft assembly's
- Main drive with brake motor for instantaneous stopping of machine for operator safety
- Motor driven dampening roller for flow control
- 17nos inking roller with 3 form rollers and 4 oscillating rollers
- 4 nos continuous dampening system with 1 form roller and 1 oscillating roller
- 1no automatically operated cleaning bridge roller between ink and dampening form roller
- Blanket jam sensor
- Motor driven ink flow control
- Declutching of inking unit for better life of rollers
- Cam type fine setting for ink duct
- Quick clamps for plate change
- Automated roller cleaning system
- Protection of blanket from UV lamp generated heat
- Inter-deck UV drier- 1UV lamp, 300W/in, sensor controlled automatic shutter on/off along with high/low power, air cooled EPS type power pack with 10-100% intensity control
- 3 Roller coating system with changeable anilox and rubber roller
- Automatic release for rubber roller during idle run
- Point contact star wheels for paper transfer
- Pneumatic on/off mechanism
- Safety switch for cylinder cleaning
- Plate bending provisionl
- Automatic lubrication unit
- Connectable to UV/IR drying unit with stacker system
- Safety provision to switch off feeder and UV lamp in case of any paper jam in drying unit
- Removable delivery pallet
- CE compliance machine
|Autoprint Fine Coat 105 Drip Off (UV & Aqueous Coating)
|Autoprint Fine Coat 105 Drip Off (UV & Aqueous Coating)
|Maximum Paper Size
|750 x 1050 mm (29.5 x 41 inches)
|Minimum Paper Size
|340 x 480 mm (13 x 19 inches)
|Maximum Coating Area
|740 x 1040 mm
|0.08 to 0.6 (approx. 60 - 600 gsm)
|2000 to 6500 sheets per hour
|830 x1070 x 1.95 mm/td>
|830 x1070 x 0.3 mm
|Polymer Plate Thickness(for spot coating)
|1.7 x 0.3 x 0.1 (for double sided tape)
|Gripper Margin on Plate
|Gripper Margin on Paper
|Circumferential image micro Adjustment
|30 mm offline
|Pull lay line Adjustment
|3 Phase, 440V, 50Hz
|Main machine power consumption
|24.8 Kw (33Hp)
|12 feet drier with 1UV and 4IR lamp
|25.6 Kw (34Hp)
|Total power consumption
|50.5 Kw (68Hp)
|Dimensions ( L x W x H )
|11M x 3.3M x 2.5M (with 12feet standard dryer)
