AUTOPRINT DEXTRA 105

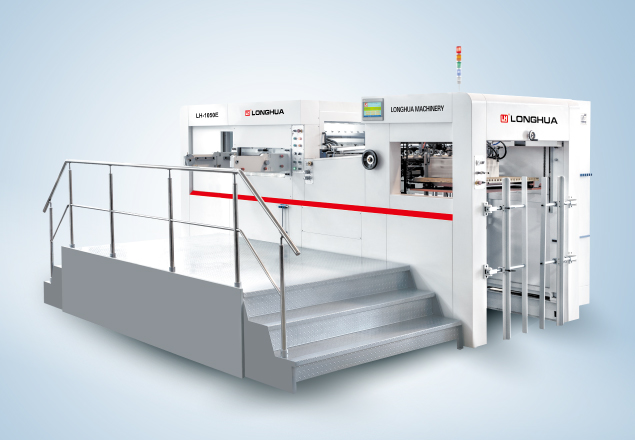

Autoprint is committed to bringing modern cutting-edge technology to its customers. A result of this commitment is Autoprint. Repetto 105 - An Automatic Die Cutting Machine designed to handle even the most intricate and detailed designs.

This reliable and high-precision die-cutting machine is the perfect answer to meet the growing demand for large format printers as well as packaging units.

Features at a Glance

Characteristics that make Autoprint Repetto 105 the industry-leading Automatic Die Cutting Machine

Feeding Positioning Section

The inclined-type paper feed conveyor board is more suitable for high-speed, thin paper and registration. Side registration has both pull and push type side lay which makes the sheet registration accurate. It has a front lay position arriving reduction of speed device which is useful for thin paper registration.

Die Cutting Section

The driving gear ensures a high speed of die-cutting together. The pneumatic locking mechanism and air clutch are fast and stable. The die-cutting frame can prevent the die-cutting plate from dropping or separating effectively.

Delivery Section

The delivery section adds a tester to a security system. It is equipped with an inset counter. Using a subsection could adjust the brush and sheet air-blowing device, so the finished product of the delivery section can stack properly. Gripper drive train expanded buffer device. A non-stop paper delivery device brings high efficiency and fast return.

Gripper and Chain

The grippers are made of special extra hard aluminum alloy, with anode treatment on the surface, ensuring accurate die-cutting and embossing, etc. at high speed. The adjustment mechanism and patent design guarantee very accurate control. An imported chain is used for the main gripper transmission, with strength increased by 45% for accurate stability and prolonged life.

Lubrication System

With a programmable lubrication system, the accurate control of PLC ensures balanced lubrication of the Automatic Die Cutting Machine.

Pneumatic Clutch

The high-quality pneumatic clutch reduces noise and minimizes impact when stopping the machine at a high speed.

Non-Stop Feeder

The Non-stop feeder ensures continuous feeding of paper without stopping the machine. This increases productivity.

Air Pump

Imported Air Pump improves the stability of the machine, low noise, high performance, and long service life.

Technical Specifications

Model	Repetto 105	Model	Repetto 105
Maximum Paper Size	1050 x 750 mm	Minimum Paper Size	400 x 360 mm
Maximum Cutting Size	1040 x 720 mm	Inner Chase Size	1080 x 745 mm
Steel Plate Size	1080 x 736 mm	Paper Thickness Card Board	80 - 2000 gsm
Paper Thickness Corrugated	<4 mm	Maximum Pressure	300 N/ cm²
Gripper Margin Setting	8 mm	Max. Cutting Speed	6500 sph
Feeder Pile Height	1550 mm	Delivery Pile Height	1400 mm
Total Power	20 Kw (HP)	Weight	16 Tons (Approx)
Over all size (L x W x H)	6300 x 4200 x 2100 mm
