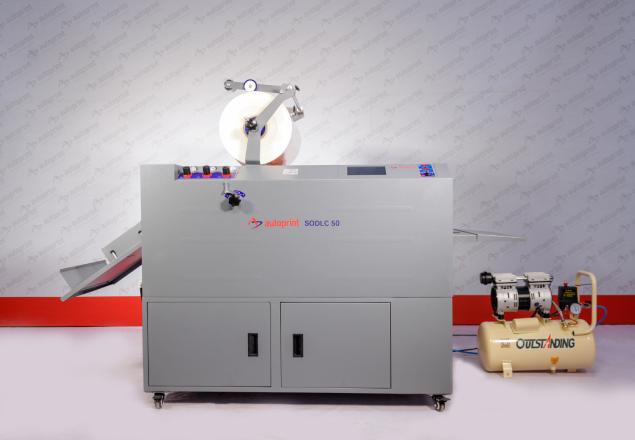

Autoprint SODLC 36/50

View Brochure

Technical Specifications

Model	SODLC 36	SODLC 50
Max. laminating width	360 mm	500 mm
Operating speed	14 meters / minute
Paper thickness	125 – 350 gsm
Laminating temperature	90 – 110 degree (Normal)
Total Power	2.2 KW
Temperature control	Upper / lower temperature are controlled separately
Upper heating roll	Steel Roll (Standard)
Lower heating roll	Rubber Roll

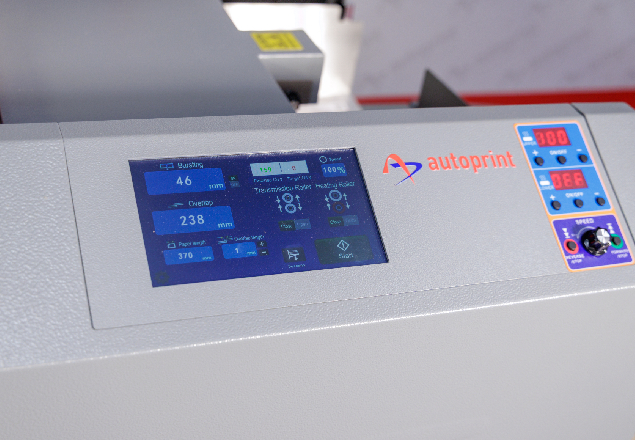

Control panel	7" Touch Panel
Feeding mode	Suction Feeding
Overlap	Yes
Auto Bursting	Yes

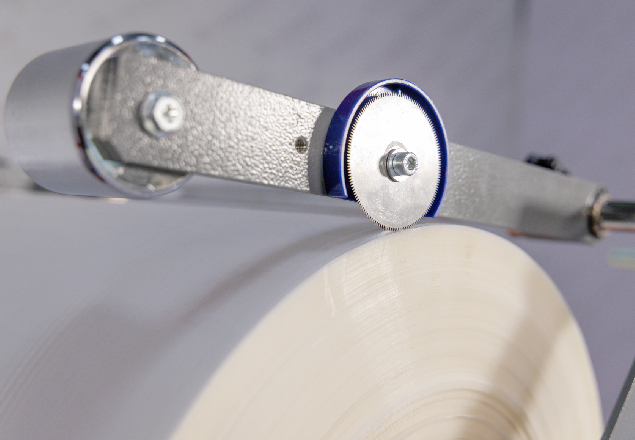

Slitting function	Yes
Anti-curling function	Yes
Loading capacity	150 mm
Optional	Lower / Upper Rewinder
Machine Size (LxWxH cm)	185x75x147	199x89x147
