Autoprint BM 108 FS

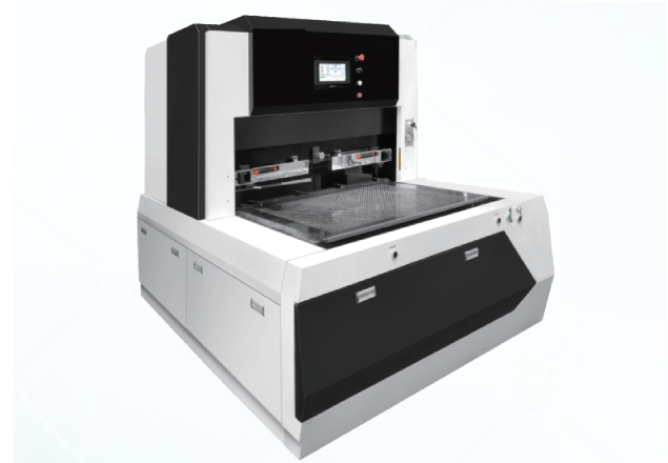

AUTOPRINT BM 108 FS

This machine significantly enhances product quality and overall enterprise efficiency. It features a high-precision servo motor, double guide rails, and a ball screw system to ensure exceptional accuracy. Equipped with the latest hydraulic technology, it includes an integrated motor oil temperature cooling system, delivering consistent and high working pressure. The machine is also fitted with a PLC control system and an intuitive touch screen interface, ensuring safe, efficient, and user-friendly operation.

View Brochure

Technical Specifications

Model	BM 108 FS
Model Sheet Size	1080 x 780 mm
Max Pile Height	60 mm
Min Pile Height	30 mm
Bench Height	850 mm
Min Stripping Size	40 x 80 mm
Stripping Speed	5 Strokes/Min
Max Pressure	100 bar
Power Voltage	380 V
Frequency	50/60 Hz
Max Consumption Power	9 kw
Air Consumption	2 L/min
Air Compression	4~7 Bar
Machine Dimension	1900 x 2100 x 1750 mm
Machine Weight	4500 kg
