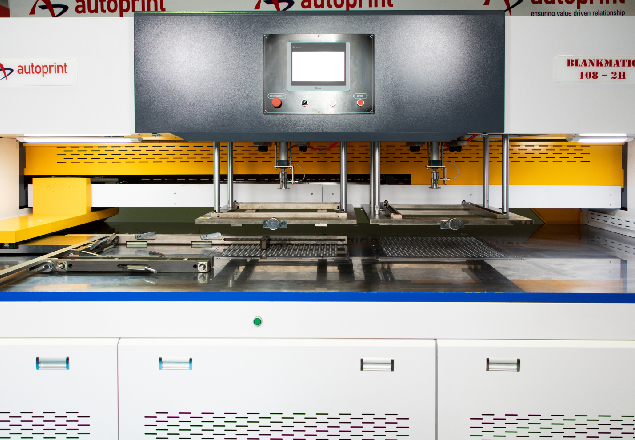

Autoprint BM 108 2H

AUTOPRINT BM 108 2H

View Brochure

Technical Specifications

Model	BM1080 2H
Max Sheet Size	1080 x 780 mm
Min Sheet Size	600 x 400 mm
Max Pile Height	100 mm
Min Pile Height	40 mm
Bench height	850 mm
Max Stripping Size	540 x 540 mm
Min Stripping Size	30 x 30 mm
Stripping Speed	25 Strokes/min
Max Pressure	90 bar
Power Voltage	380 V
Frequency	50/60 Hz
Max Consumption Power	5.5 kw
Insurance electric current	10 A
Air Consumption	2 L/Min
Air Compression	4~7 Bar
Input Power	3 Phase
Overall Dimension	3750 x 1800 x 1900 mm
Machine Weight	2400 kg
