AUTOPRINT MOSLC 37
Features
Poducts FAQ
What type of lamination does the machine support?
It supports single-side lamination with auto cut.
What is the maximum laminating width?
The maximum laminating width is 370 mm.
What unwinder diameter is supported?
It supports up to 300 mm diameter with 1″ and 3″ core sizes.
What is the machine’s
operating speed?
The machine operates at 13 metres per minute.
What is the supported paper thickness range?
It supports paper thickness from 125 to 350 gsm.
What is the laminating temperature range?
Laminating temperature ranges from 90°C to 110°C (manual control).
How long is the heater warm-up time?
Heater warm-up time is
approximately 5 minutes.
What is the total power consumption?
The machine consumes 1.6 kW of power.

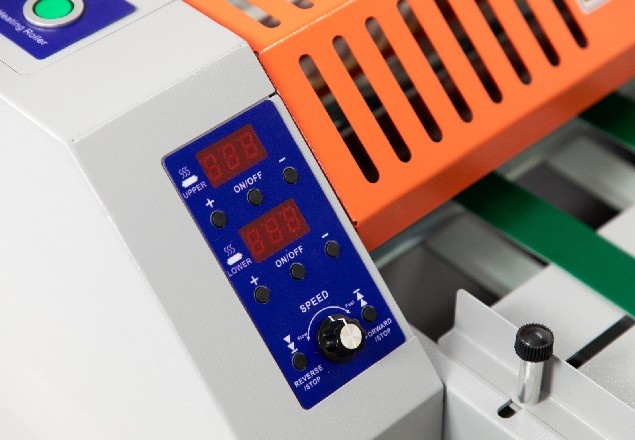

Does it have temperature control?
Yes, it
offers optional upper and lower temperature control.

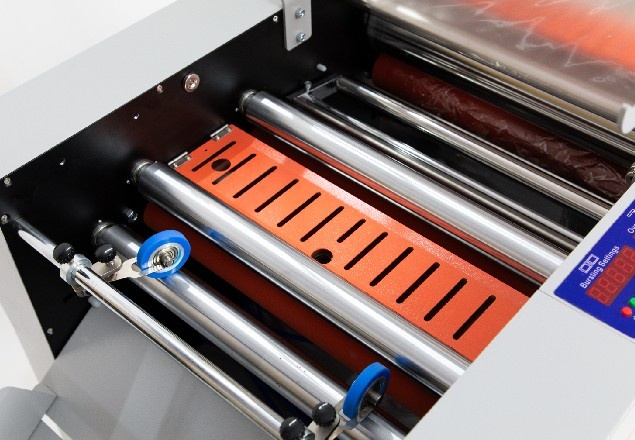

What is the upper heating roll made of?
The upper heating roll is made of steel.
What material is used
for the lower heating roll?
The lower heating roll is made of rubber.

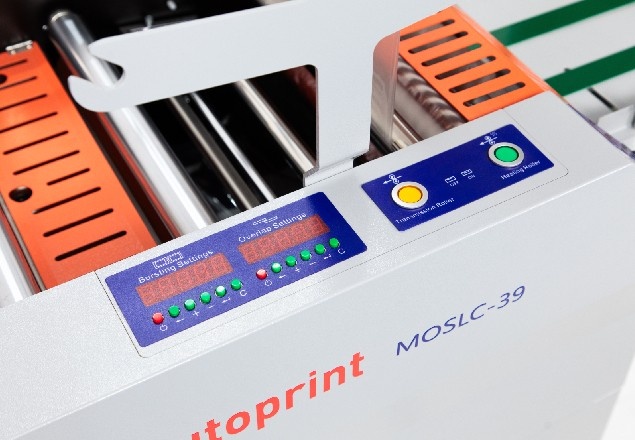

What kind of control panel does it have?
It features a digital LED control panel.
What feeding system is used?
The machine uses a manual
feeding system.
Does it support overlap feeding?
Yes, it supports overlap feeding function.
Is auto separation (bussing) included?
Yes, the machine
includes a bussing function for auto separation.
Does it offer a slitting function?
Yes, a slitting function is available.
Is there an anti-curling feature?
Yes, it comes with an anti-curling function.

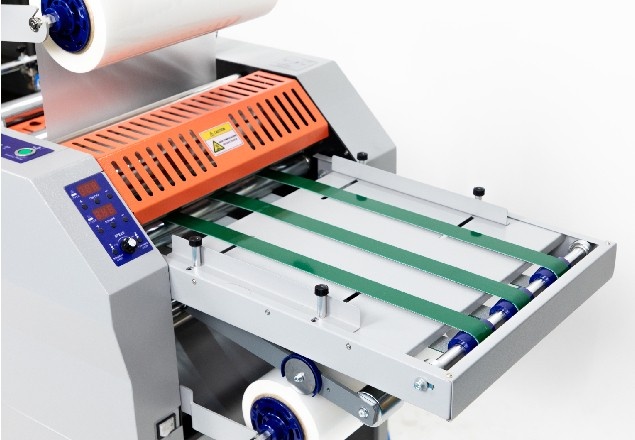

Is a conveyor belt included?
Yes, the machine includes a conveyor belt.
What power supply is required?
It requires a 220V, 50 Hz single-phase power supply.
What are the machine dimensions?
The dimensions are 100 x 61 x 125 cm (L x W x H).
Is a stabilizer
required for running the machine?
Yes, stabilizer is required to run the machine.
Lamination film specification?
BOPP 26 MICRON.
