| MODEL |
FSDDC 0604 |
| Maximum Cutting Size |
600 × 400 mm (23.62" × 15.75") |

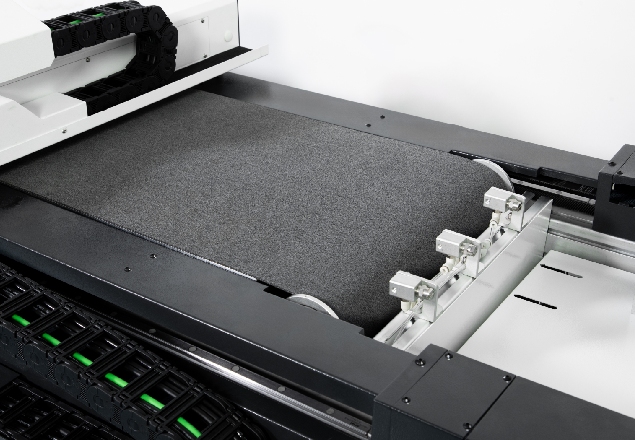

| Feed Type |
Automatic Sheet Feeder |
| Feeder Pile Height |
150 mm |
| Media Hold-Down Method |
Through Vacuum
(3 Zone Work table, every zone can be activated independently)
|

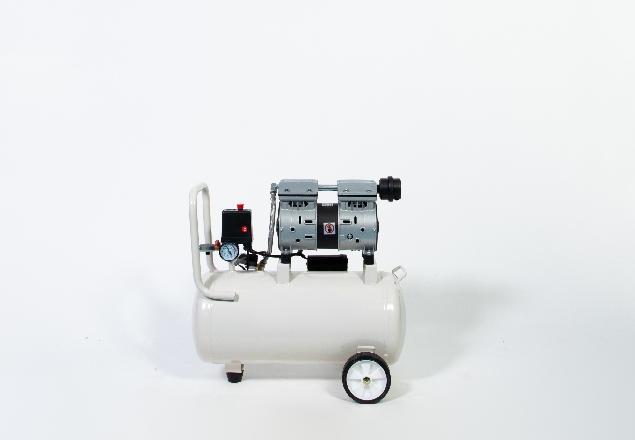

| Air Supply |
550 W Compressor (Included) |
| Suction Supply |
Vacuum Pump (1.5 Kw Pump Included) |

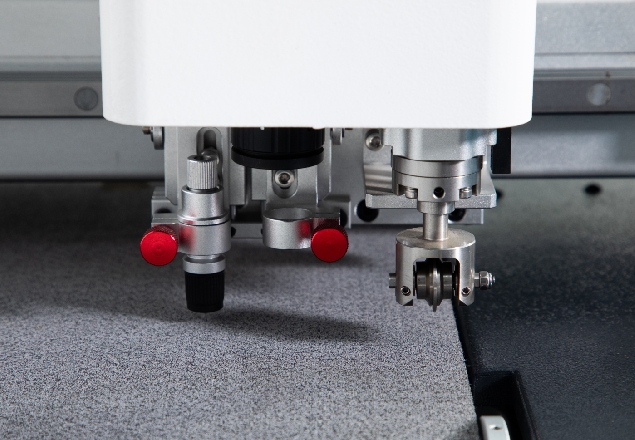

| Tool Head Type |
Multi-Functional head to hold various tools |

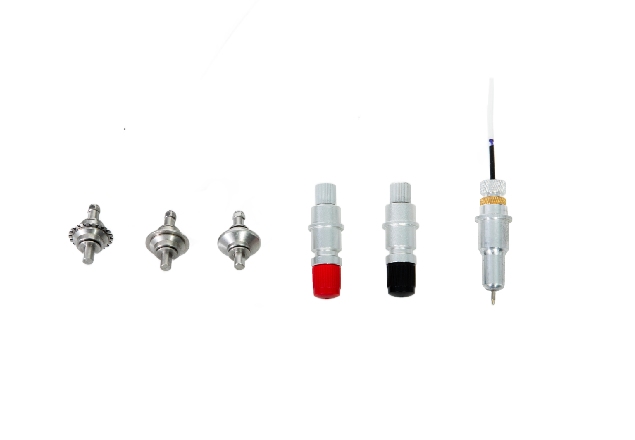

| Standard Supply of Tools |
Through Cut Knife, Kiss-Cut Tool, Creasing Tool, Marking Pen
|
| Tool Change |
Manual |
| Translation Velocity |
0–1800 mm/s |
| Maximum Cutting Speed |
0–1300 mm/s (Depends on Cutting Material) |
| Cutting Accuracy |
Plus/Minus 0.1 mm |
| Maximum Cutting Thickness |
≤ 1.5 mm (Depends on Cutting Material Properties) |
| Registration System |
High Definition CCD Camera |
| Positioning Method |
Circular Mark |
| Job Recognition |
QR Code for Instant Recognition |
| Delivery Type |
Receiving Collection Tray |
| Compatible OS, Interface |
Windows, Ethernet Port |
| File Format |
DXF, PLT, PDF, HP/GL |
| Transmission |
Digital Servo Motor, Linear Guide, Belt Type |
| Power Supply |
220 V ± 10%, 50 Hz, Single Phase |
| Power (Machine) |
3 Kw |
| Physical Dimensions (L × W × H) |
2140 × 800 × 1100 mm |
| Net Weight / Gross Weight |
280 KG / 390 KG |
