Features
- Digitally Kiss-Cut any shape labels without any dies
- Cut any shape-Through-Cut & Creasing without any dies
- Less margin due to double row roller feed system
- Use cutting file from computer or USB Drive
- Faster Cutting Speed
Additional Features
Both Cutting and Creasing, Support Half Cut/Full Cut with Top Servo Motor, Max, Speed 1600mm/s
- Real CCD detection system, automatically recognize mark point in different Colors and out in high precision.

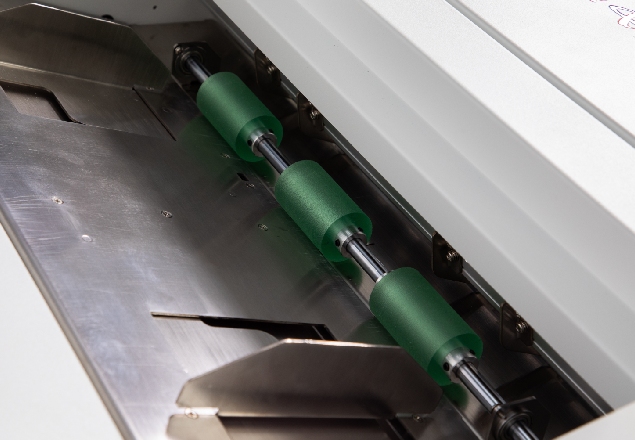

- Once to load 1-150 pcs material, auto feeding and no stuck, suits for small bach production.

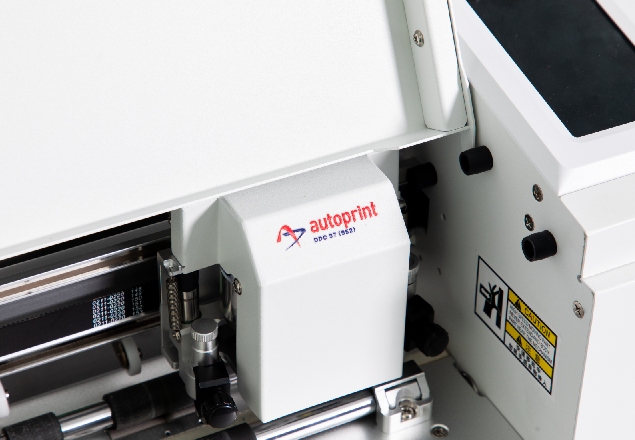

- Integrated machine with dual heads, finish cut and creasing at one time
- Multi interface connections, USB, U disk, WiFi, network cable, offline
- Mix material cutting with OR code, auto acquiring cutting files in different design

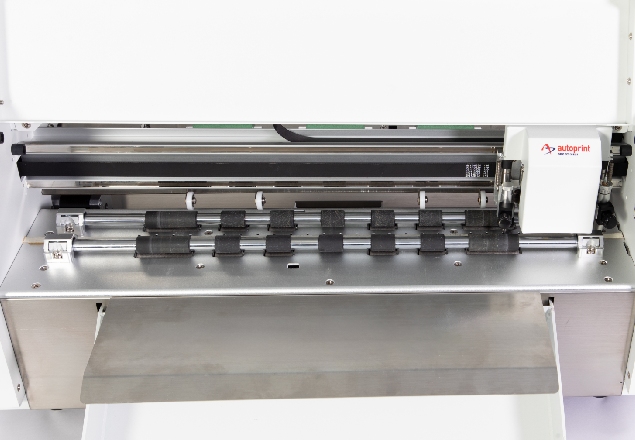

- Dual pinch rollers, properly using and saving cutting material

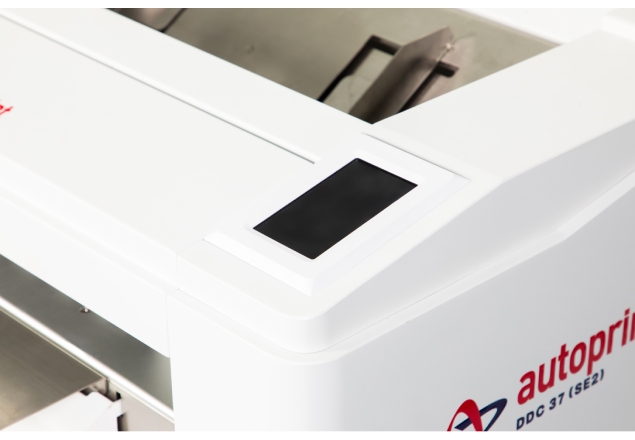

- 4.3 inch sensitive LCD touch screen conveniently operation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DDC 37 (SE2) |
| Machine Type | Auto Sheet Feed - Digital Die Cutter & Creasing |
| Max. Feeding Width | 370 mm |
| Max. Cutting Width | 360 mm |
| Max. Cutting Speed | 1600 mm/s |
| Max. Cutting Thickness | 80g - 400g / 1 mm |
| Drive | Servo Motor System |
| Number of Tools | 1 Cutting Tool & 1 Creasing Tool |
| Control | 4.3 inch Touch LCD Display |
| Interface | USB / USB Disk / Ethernet / Wi-Fi |
| Function | QR Code |
| Knife Force | Up to 2000g |
| Positioning Method | HD Camera / Circular Mark / L Mark |
| Accuracy | +/- 0.01 mm |
| Net Weight | 32 kg |
| Gross Weight | 53 kg |
| Packing Dimensions | 880 × 580 × 560 mm |

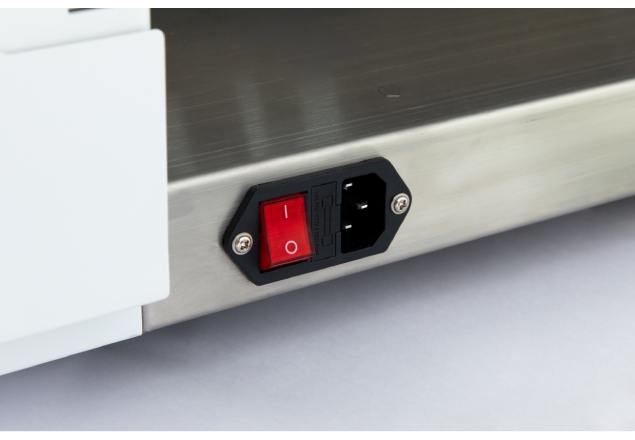

| Power | 220 V, 50 Hz |
| Motor Power | Less than 100 W |
| Software | Support AI & Corel Draw |
| OP System | Windows |
