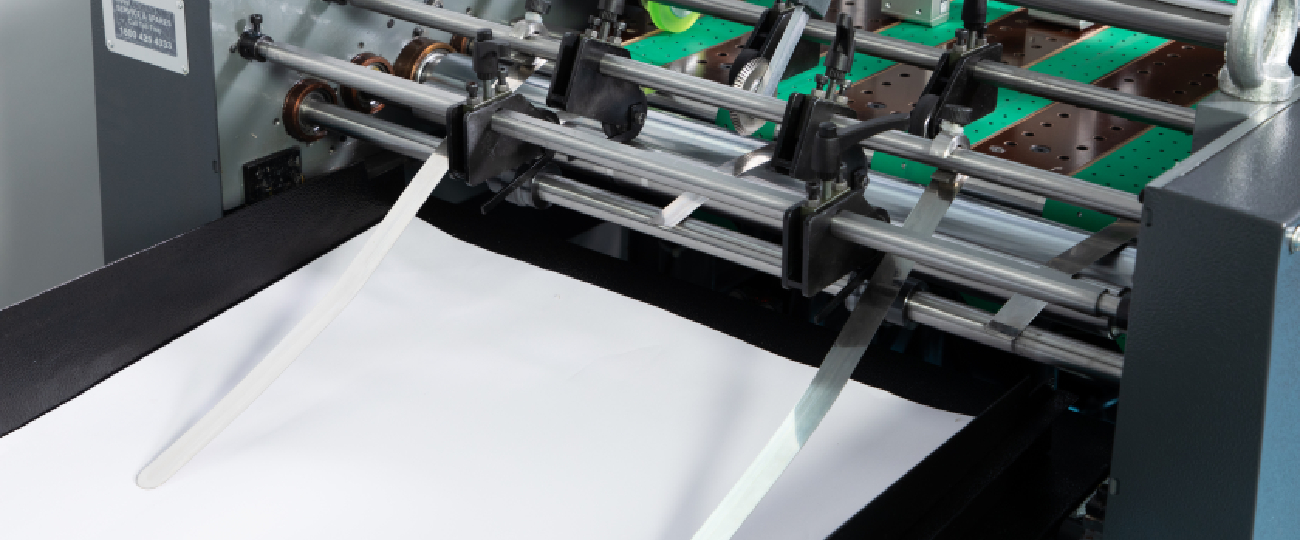

VDP 50 - Digital Creasing / Perforating Machine
Manual Feed, Simple and easy operation
One Machine. Multiple Applications
Autoprint Reckoner VDP 50 is designed to effectively uddress a wide range of exciting and profit-anhancing opplications
Some of these include:
- Numbering
- Barcoding & QR Coding
- Slips, Application Forms, Personalized Cheques, Venable Data Printing for Courier Slips,Challans,Mailers, Examination Forms and Hall Tickets
- Mail Addressing
- Logo Printing...and more!
Technical Specifications
| Specification | Detail |
|---|---|
| Max. Sheet Size | 584 x 508 mm (23" x 20") |
| Min. Sheet Size | 127 x 178 mm (5" x 7") |
| Speed | 1500–5000 sheets per hour |
| Paper Thickness | 30–300 gsm |
| Power Supply | 2 HP (AC Drive) |
| No. of Heads (standard) | 2 nos |
| Max. No. of Heads | 4 nos |
| Feeding | Automatic suction feeding |
| Feeder Pile Height | 350 mm |
| Side Lay Registration | Available |
| No. Of Heads (standard) | 2 nos |
| Maximum Number Of Heads | 4 nos |
| Head Size | 1/2 inch |
| Heads Type | Unlocked/Locked |
| No of Catridges TU | 2 nos 102 112.7mmj |
| Wfreel Performon Creasing | Perforation Wheel-1 No Creasing Wheel-1 No. Holder - 4Nons |
Manual
Operator Manual
Get complete guidance on how to operate your Autoprint machines safely and efficiently. Download manuals, follow step-by-step instructions, and stay updated with best practices.
FAQs
Got Questions? We’ve Got Answers!
Manual feeding.
Max: 330 mm (W) x 3000 mm (L), Min: 50 mm (W) x 90 mm (L).
70 – 400 gsm.
70 – 300 gsm.
Up to 3150 sheets/hour (A4 size with 1 creasing).
±0.2 mm.
Maximum of 32 lines.
32 programmable groups.
7-inch touch pad console panel.
Small knife bar.
Yes, with total counting and batch counting functions.
No paper and paper jam detection.
220 VAC, single phase; power consumption is 250 W.
27 kg.
1 creasing bar and 1 perforating bar.
Yes, a cabinet is available optionally.
It can do in slow speed, but there is high risk of paper jam. Hence, not recommended.
Yes, in slow speed to avoid paper jam.
More than 1 lakh sheets. For perforating machines, the blade must be changed every 10,000 sheets.
Yes, stabilizer or UPS is mandatory (to avail 6-month warranty).
No, only one direction possible in single pass. Maximum width is 330 mm.
