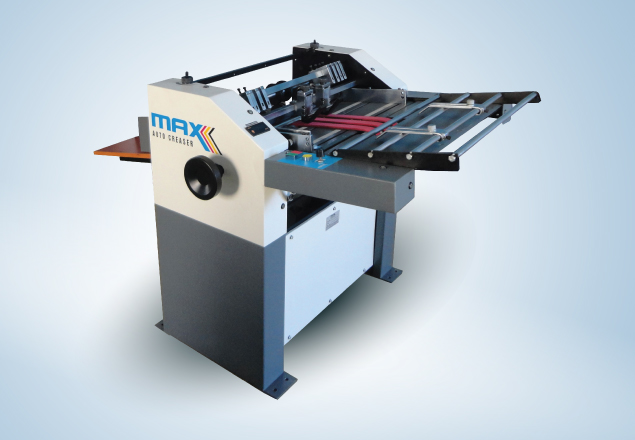

MAX Auto Creaser

Auto Crease
4 in one with Auto feeder - Fine creasing, micro-perforating, sticker half cutting and spine & hinge creasing is now made very simple and hazzle free. This auto creaser eliminates common issues like digital cracking. The lines are so fine and flat that the sheet can pass through laser printers and copiers without any issues. This indigenous feeder mechanism works without a vacuum pump on most varieties of paper stocks.
Vaccum Free Feeder
This indigenous feeder mechanism works without a vacuum pump on most varieties of paper stock.
View Brochure
Features at a Glance
- Completely eliminates digital cracking on stock ranging from 60 - 350 gsm
- Digital counter
- Micro perforates as close as 16 mm and up to 50 mm apart
- Can vary the spine and hinge width as needed
- Specially formulated rotary action rubber creasing matrix allows incredible production output of over 15000 A4 sheets per hour
- Produces simultaneous multiple crease, micro-perforation and sticker half cutting without affecting speed
Technical Specifications
Model | Max Auto Creaser | Model | Max Auto Creaser |
---|---|---|---|
Feeder Type | Automatic Friction Feeding | Maximum Paper Size | 610 x 610 mm |
Minimum Paper Size | 150 x 175 mm | Paper Thickness | 60 - 350 gsm |
Running Speed Max | 15000 A4 sph | Speed | Variable |
Drive | AC Drive | Power Supply | 220V / 150Hz |
Weight | 170 Kgs (approx) | Over all Size (L x W x H) | 1600 x 1050 x 1060 mm |
